Overview

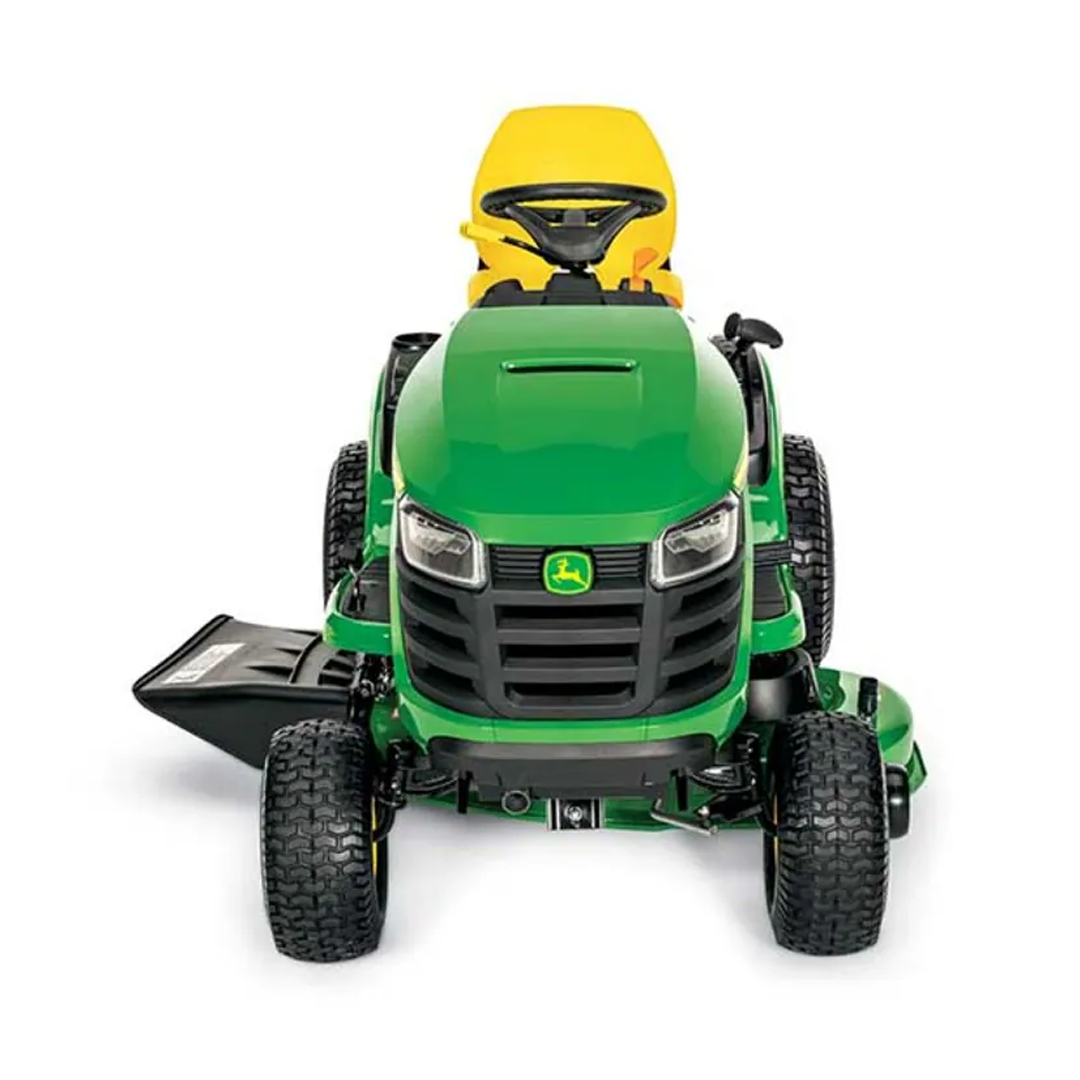

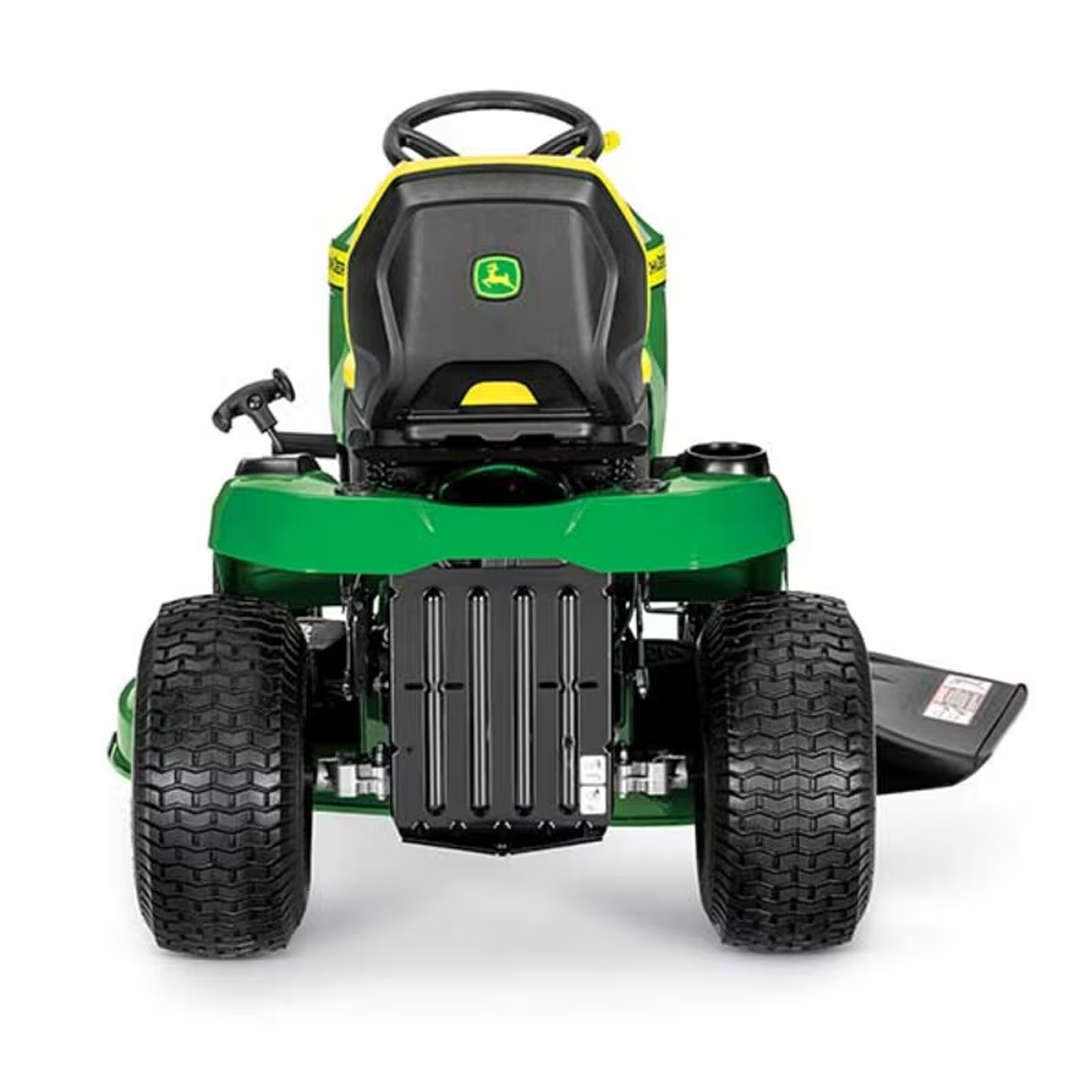

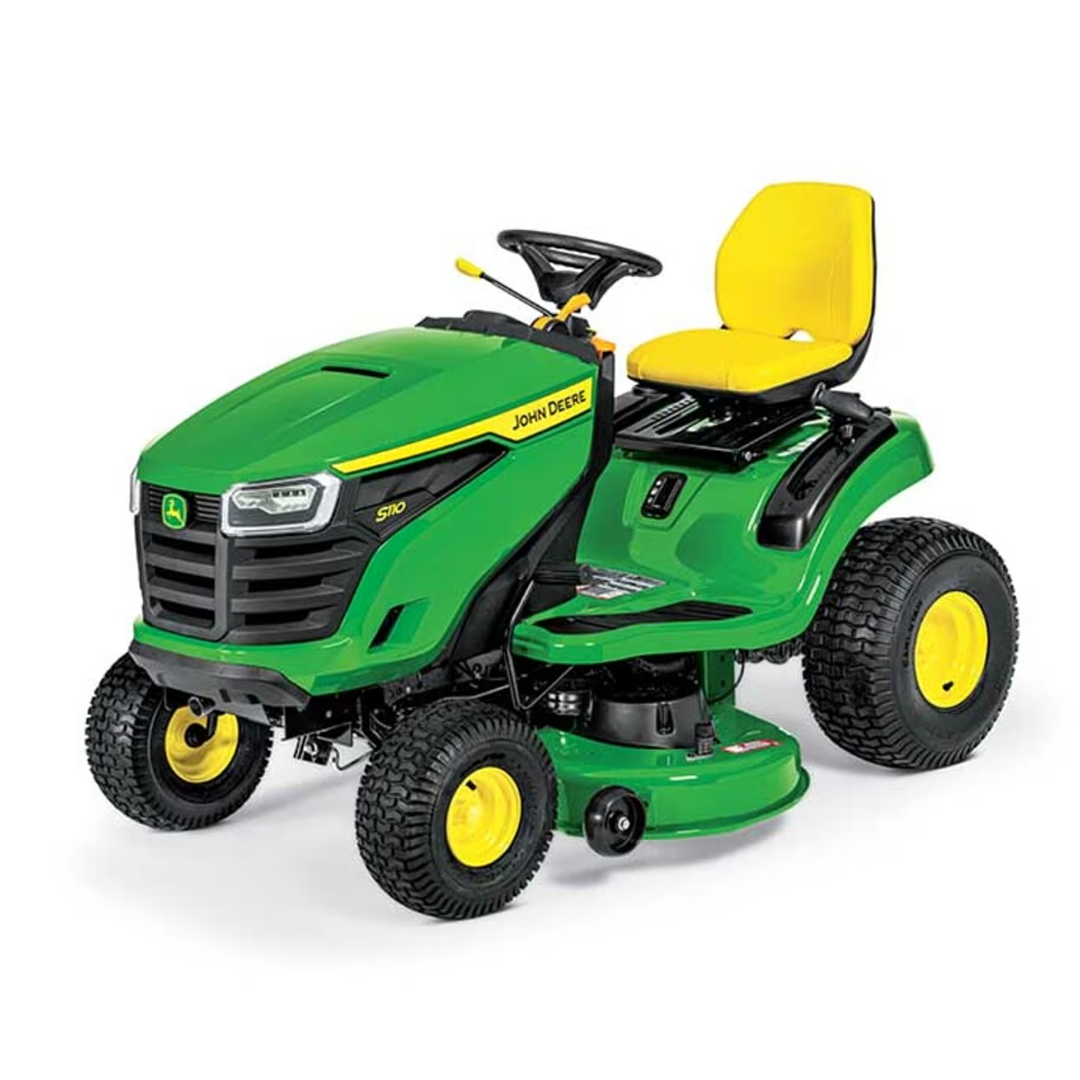

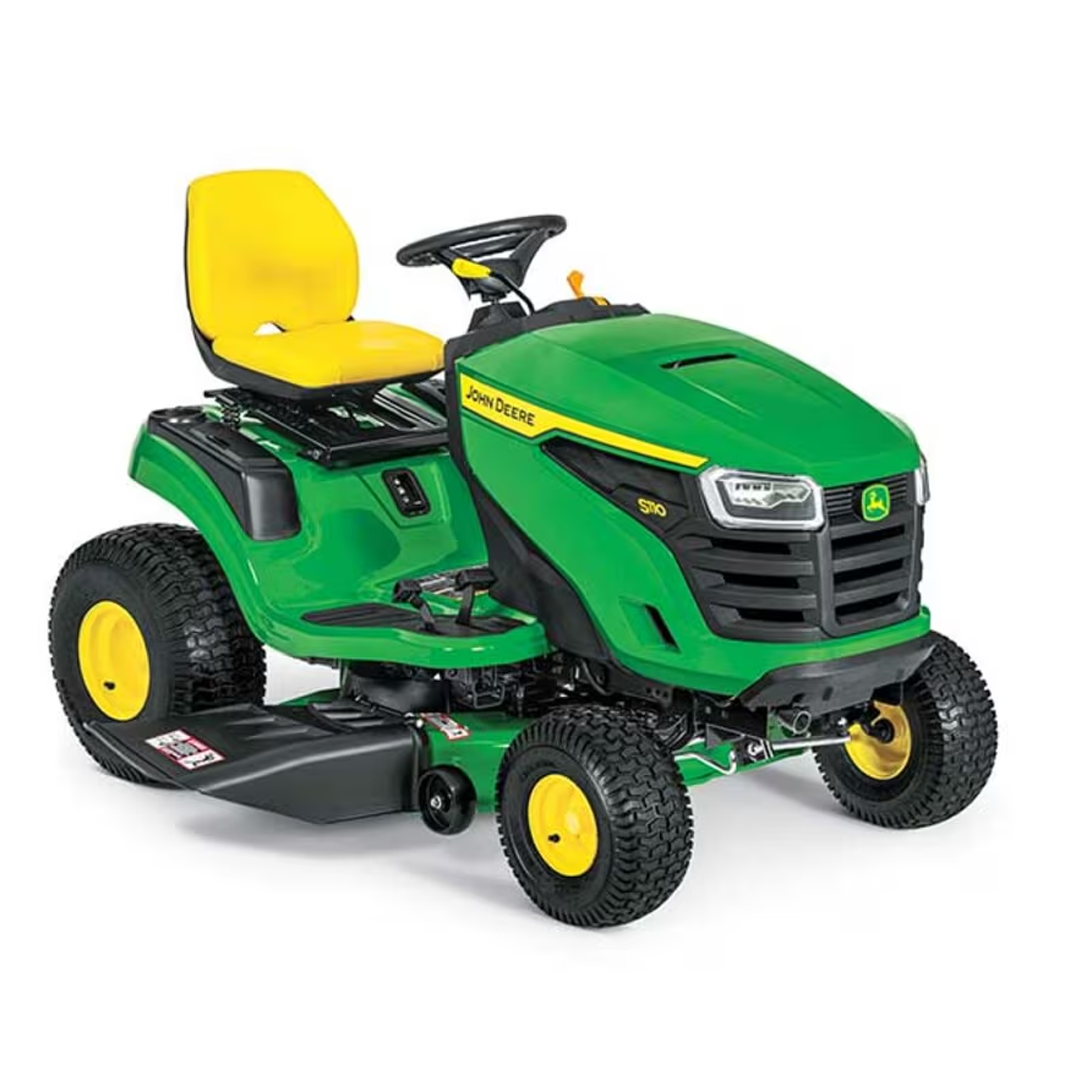

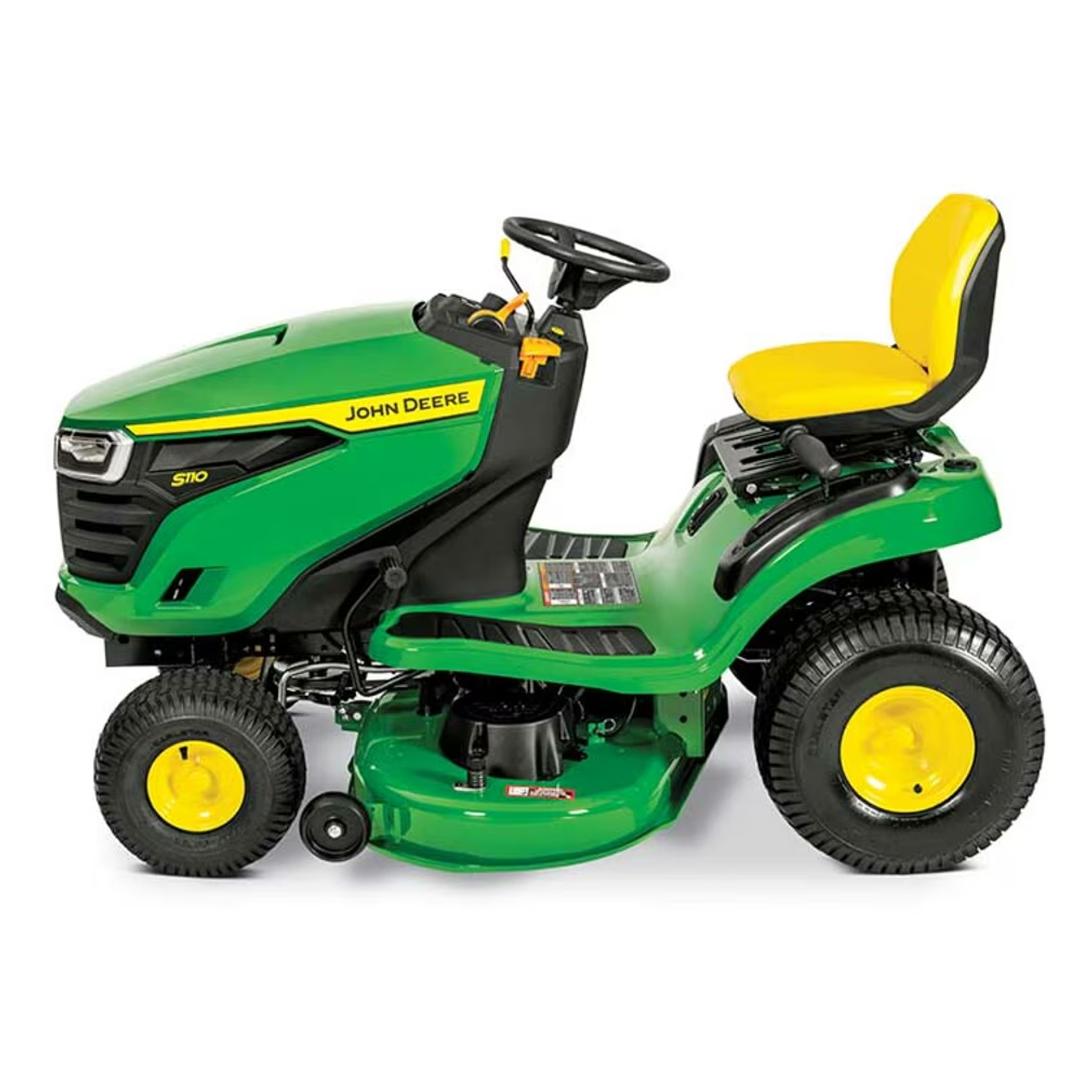

Master lawns up to 1 acre with the John Deere S110 100 Series lawn tractor, featuring a robust 19HP (14.2kW)/540cc single-cylinder overhead-valve engine with full-pressure lubrication and oil filter for reliable torque through tough mowing, mulching, or bagging without power loss. The 42-inch Edge stamped 13-gauge steel mower deck delivers superior cut quality via two-spindle design, wash port for easy cleaning, StarLock blades for secure torque, and 13-position spring-assisted lift (1-4 inches in 0.25-inch increments) for precise height control on varied terrain. Kanzaki Tuff Torq TLT200 hydrostatic transmission with side-by-side pedals provides infinite speeds up to 5.5 MPH forward/3.2 MPH reverse, 18-inch turning radius, internal wet disc brakes, and Reverse Implement Option (RIO) for safe operation around obstacles.
Key Features
-
Edge Mower Deck System: Heavy-duty stamped steel construction with molded wheels, easy-level adjustment, single-belt drive, and slide-under tractor mounting using spring clips; meets ANSI/OPEI standards; optional mulch plug, 6.5-bu rear bagger, or high-lift blades enhance performance for clippings collection or nutrient return.
-
Operator Comfort & Station: 15-inch high-back cut-and-sewn seat with 5.5-inch fore-aft adjustment, two coil springs for vibration absorption, and tilt-forward access to 2.4gal rear fuel tank (mechanical gauge visible from seat); contoured dash, storage tray, cup holder, non-slip anti-vibration floor mats, and hour meter for convenience.
-
Durable Build & Versatility: Full-length 12-gauge welded steel frame with e-coat/powder paint, cast-iron front axle, mold-in-color hood (UV/rust-resistant with cooling vents), incandescent headlights, and CargO Mount system for attachments like sun canopy, snow blower (44-inch), front blade (46-inch), sprayer, or spreader (16 tow-behind options); 500lb towing capacity.
Performance Specs
-
Engine & Electrical: Briggs & Stratton 33R877 (M33) model (540cc displacement, mechanical governor, single-lever choke/speed control, cartridge air filter, no-tools oil drain/filter change); 12V 300CCA battery, 8amp regulated charging, Bendix electric start for dependable operation.
-
Drive & Chassis: Hydrostatic two-wheel drive with transaxle oil cooler (fins/fan), sector/12-inch pinion steering (25-inch uncut circle); 20x8-8 rear/15x6-6 front Turf Saver tires; parking brake on pedestal; QR code for Equipment Mobile App (maintenance tracking, parts, manuals via Bluetooth smart connector option).
-
Warranty & Reliability: 2-year/120-hour bumper-to-bumper (covers tractor/engine); assembled in Greeneville, TN; 414lb weight (no fuel), 69.7-inch length, 55.2-inch width with deck for compact storage.
